CSR2 PULLEYS
Availability: Ship in 2-4 weeks
รายละเอียดทางเทคนิค
| SKU | Product Name |
|---|---|
| 6C-300343-03/RED-GRE | PULLEY CSR2/RED-GREY |
หมายเหตุ

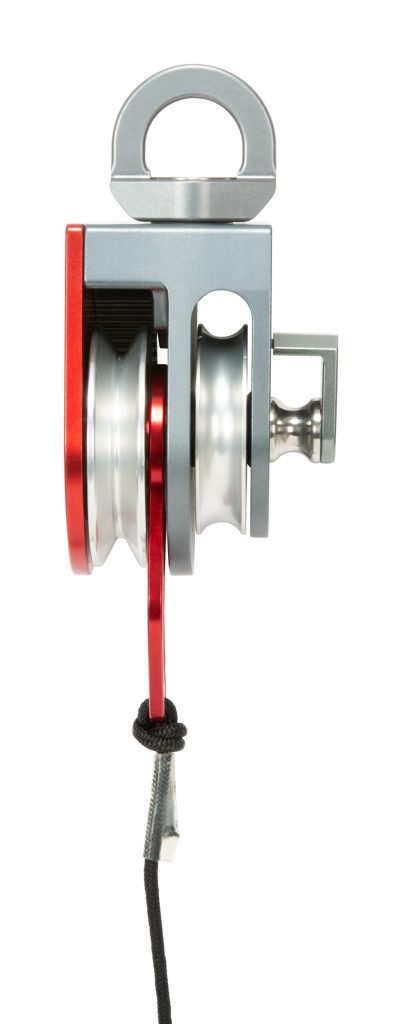

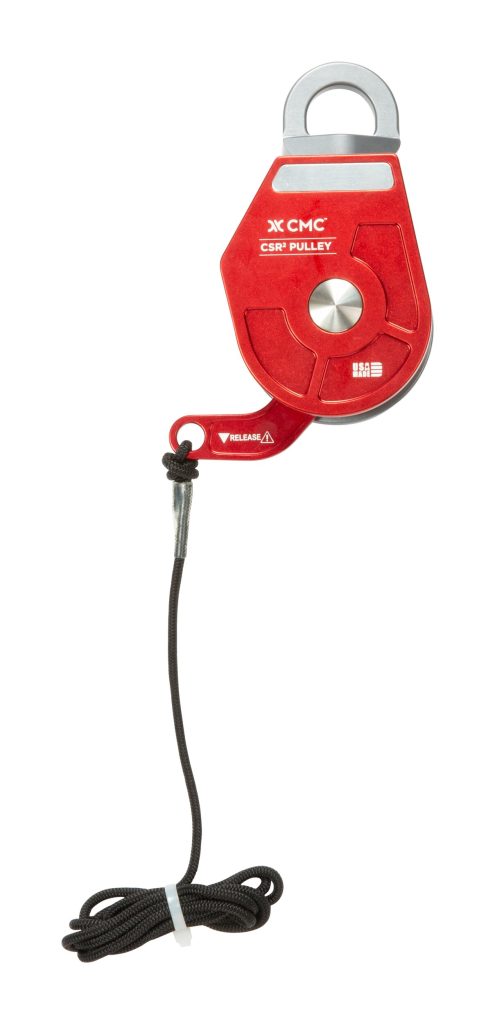

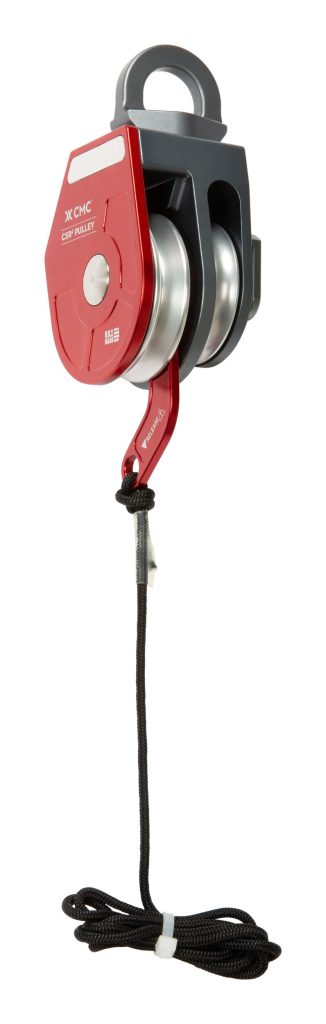

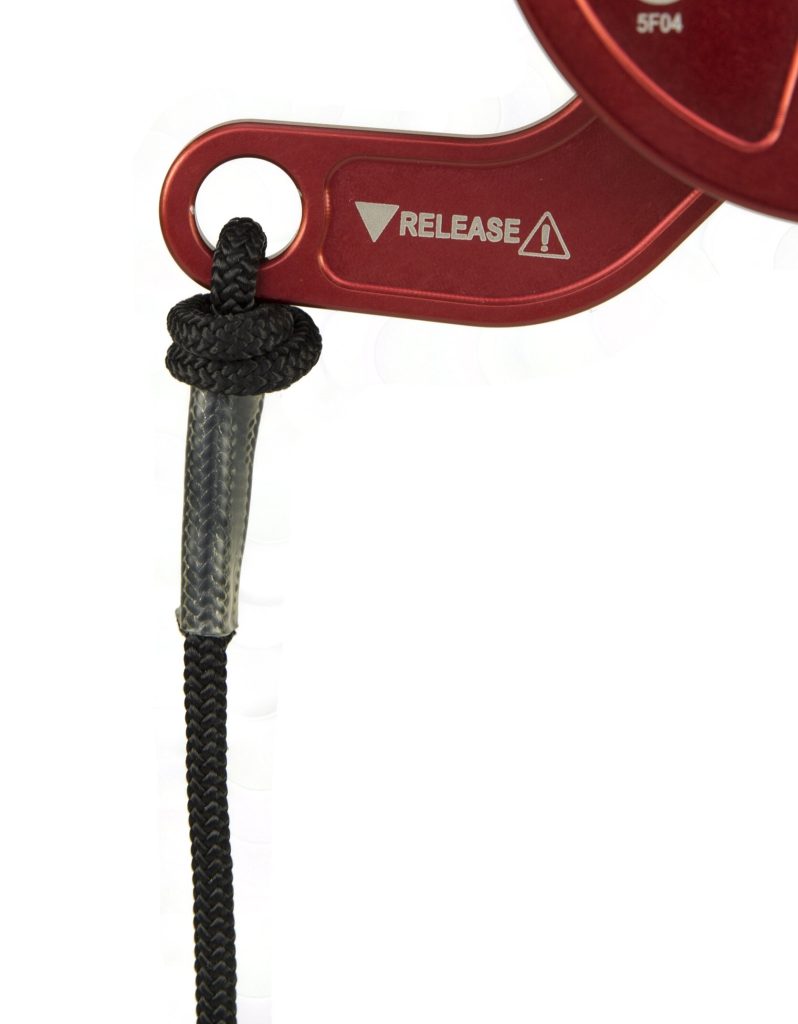

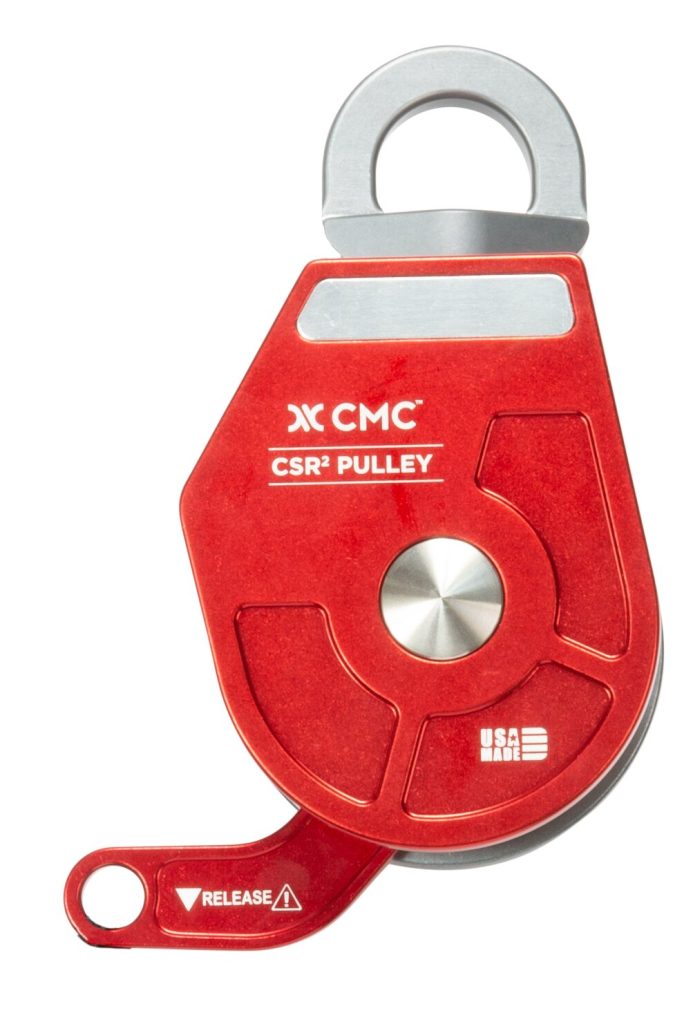

Classified to both NFPA and EN standards. Our CSR2 (Confined Space Rescue) Pulley is strong and light, and accommodates life safety rope from 7/16 in (11 mm) to 1/2 in (13 mm). Ideal for industrial applications as well as many rescue operations, the CSR2 uses our proprietary, patented locking system, which eliminates a toothed cam or Prusik so it can be easily and safely released while under load. The absence of the toothed cam means that even if the system is fully collapsed and pulled tight, it can still be released easily. Systems using a toothed cam must be raised even further before the cam can be released, which can be impossible if the system is fully collapsed without thinking about this problem ahead of time – causing potential problems with the load on the system becoming stuck. An integral thrust-bearing swivel reduces torque by aligning the pulley with the load, thereby increasing efficiency and safety. Its larger size allows for the easy application of rescue-size carabiners.
Machined from a solid block of aircraft-grade aluminum, the CSR2 features a high-strength aluminum side plate, sealed bearings and anodized aluminum sheaves. The side becket location allows for maximum lift height and full retraction of the system, and a removable becket cover facilitates changing out lifeline with sewn terminations.
Features
All-new stronger, lighter-weight design
Compatible with 11-13 mm life safety rope
CSR2 Pulley MBS 40 kN (8,992 lbf)
CSR2 Double Pulley MBS 40 kN (8,992 lbf)
Machined from solid block of aircraft-grade aluminum
Pat. 7,419,138
Made in USA
Classifications
NFPA – General Use
CE – EN 12278
